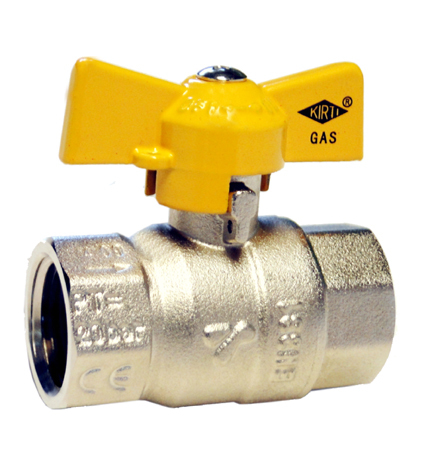

Isolation Ball Valves for Gas

Isolation Ball Valves for Gas Specification

Material
Forged Brass

Valve Type
Ball Valve

Control System
Manual lever operated

Features
Quarter-turn operation, corrosion-resistant, blow-out proof stem, anti-static device, maintenance-free design

Connection Type
BSP/NPT threaded ends

Valve Size
15mm to 25mm

Sealing
PTFE (Teflon) Seats

Application
Gas flow control and isolation in pipelines, LPG/CNG distribution systems, industrial and domestic gas lines

Structure
Two-piece body, full bore

Type
Isolation Ball Valve

Power
Manual

Pressure
Up to 20 Bar (290 psi)

Media
Other

Port Size
1/2 to 1

Temperature
-20c to +150c Celsius (oC)

Disc
Forged Brass Ball

Size
15mm

Compliance
EN 331, ISO 9001 certified manufacturing

End Connection
Threaded female/female

Mounting Position
Universal (horizontal or vertical)

Leakage Class
Class VI, bubble-tight shutoff

Working Medium
Non-aggressive gases

Operation
90 quarter-turn handle

Handle Material
Steel with plastic sleeve

Body Finish
Nickel plated for corrosion protection

Isolation Ball Valves for Gas Trade Information

Minimum Order Quantity
100 Pieces

Supply Ability
5000 Pieces Per Month

Delivery Time
7 Days

About Isolation Ball Valves for Gas

Size 15mm to 25mm

Materials

Part No.	Name of Part	Material
1	Body	Forged Brass
2	Ball	Forged Brass
3	Seat	PTFE Teflon
4	Stem Seal	Viton Rubber
5	Nut	Nyloc Nut
6	Handle	Sheet Handle

Features

Machined to mirror smooth finish
100% Tested against leakage
Hard crome plated
Double 'O' Ring stem seal
Self Locking Nut
BSP Feamle Thread
Working temp: -20 deg C to +150 degC

Discover the new Isolation Ball Valves for Gas-engineered to deliver soaring reliability at an unbeatable price. Designed with a valiant forged brass or stainless-steel body and a corrosion-resistant nickel-plated finish, these valves offer unassailable strength and security. Enjoy the lowest price while meeting EN 331 compliance and ISO 9001 certified standards. Achieve bubble-tight (Class VI) shutoff with PTFE seats and robust construction for universal mounting. Suitable for non-aggressive gases, this manual, quarter-turn valve excels in LPG/CNG distribution, pipelines, and industrial or domestic gas applications.

Material Excellence, Application Versatility, and Distinct Advantage

Our Isolation Ball Valves for Gas are crafted from high-grade forged brass or stainless steel, ensuring durability and corrosion resistance. The user-friendly manual quarter-turn operation offers precise control of gas flow, making them ideal for industrial, domestic, and distribution pipelines. Bubble-tight shutoff and maintenance-free design provide operational safety and reliability. The unassailable build quality and versatile usage across gases make these valves the preferred choice for dependable performance.

Sample Availability, Supply Capacity, and Smooth Transaction

We offer samples of our Isolation Ball Valves for Gas, readily handed over for evaluation. Our robust supply ability ensures we can meet soaring demand estimates, supporting both bulk and custom orders. Flexible payment terms and prompt shipment options streamline the process, so your gas control solutions arrive efficiently. As a dedicated exporter, manufacturer, and supplier from India, we stand behind our seamless purchasing experience.

FAQ's of Isolation Ball Valves for Gas:

Q: How can the Isolation Ball Valve for Gas be installed in different pipelines?

A: The valve is designed for universal mounting, allowing it to be installed in either horizontal or vertical orientations. Its threaded BSP/NPT female ends provide compatibility with a wide range of gas pipelines.

Q: What media are these ball valves compatible with?

A: These valves are suitable for non-aggressive gases including natural gas, LPG, CNG, and air, making them versatile for various industrial and domestic applications.

Q: When should the Isolation Ball Valve for Gas be used in gas distribution systems?

A: The valve is ideal for isolating or controlling gas flow in pipelines, especially during maintenance, repair, or emergency situations to ensure operational safety.

Q: Where are these Isolation Ball Valves typically applied?

A: They are commonly used in LPG/CNG distribution networks, industrial and domestic gas pipelines, and other non-aggressive gaseous media systems requiring controlled shutoff.

Q: What is the process for ordering and receiving a sample?

A: Simply contact us to request a sample. Our team will coordinate the prompt handing over and shipment of samples, allowing you to estimate product fit before bulk purchasing.

Q: How does the anti-static and blow-out proof design benefit the user?

A: The anti-static feature prevents spark generation, reducing explosion risk, while the blow-out proof stem increases safety, reliability, and long-term durability during operation.
