C.I. Taper Cocks

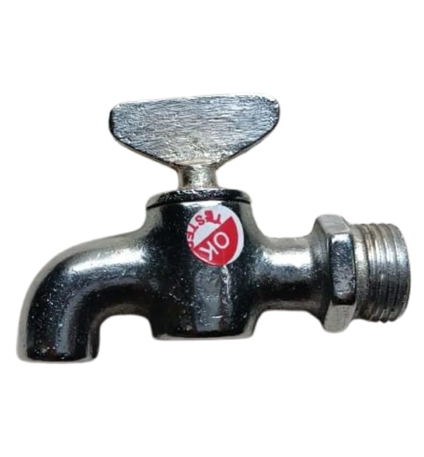

• Application
• other, Plumbing, Domestic & Industrial

• Coating Type
• Triple Layer CP

• Color
• Silver Chrome Finish

• Connection
• Other, Threaded

• Connection Type
• Male Threaded

• Diameter
• 15 mm

• Flexibility
• Rigid

• Length
• 80 mm (Approx.)

• Material
• Other

• Material Grade
• FG 200/220

• Outer Diameter
• 15 mm (1/2 inch)

• Product Type
• Other, Taper Cock

• Rated Pressure
• 10 bar max.

• Sealing Type
• Taper Cone Metal to Metal

• Section Shape
• Other, Cylindrical

• Shape
• Other, Tapered

• Standard
• Other

• Surface Treatment
• Other, Chrome Plated (C.P.)

• Temperature Range
• -10C to 80C

• Tensile Strength
• 200 MPa minimum

• Thickness
• 5 mm (Body Approx.)

• Thread Type
• BSP (British Standard Pipe)

• Tolerance
• 0.1 mm

• Usage
• Water supply flow control

• Yield Strength
• 120 MPa minimum

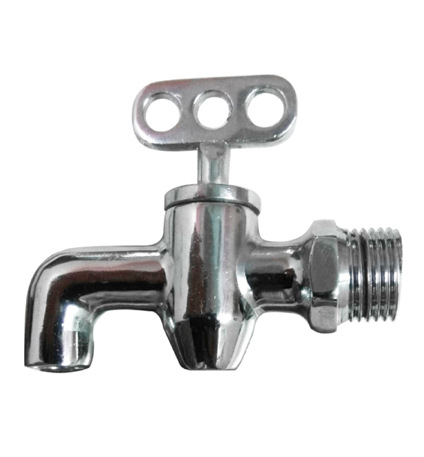

• Application
• other, Wash Basin, Bathroom, Kitchen, Water Closets

• Bend Radius
• Fixed, not applicable

• Coating Type
• Bright Chrome Finish

• Color
• Silver

• Connection
• Other, Threaded

• Connection Type
• Male Threaded

• Diameter
• 15 mm

• Flexibility
• Rigid

• Length
• 65 mm (approx.)

• Material
• Other

• Material Grade
• Zamak 3

• Outer Diameter
• 15 mm

• Product Type
• Other, Taper Cock

• Rated Pressure
• 10 Bar

• Sealing Type
• Rubber Washer Sealed

• Section Shape
• Round

• Shape
• Other, Tapered

• Standard
• Other

• Surface Treatment
• Other, Chrome Plated (C.P.)

• Temperature Range
• 0C to 85C

• Tensile Strength
• Over 250 MPa

• Thickness
• 3-5 mm (body walls)

• Thread Type
• BSP (British Standard Pipe)

• Tolerance
• 0.05 mm

• Usage
• Water Flow Control

• Yield Strength
• Over 215 MPa

• Application
• other, Bathroom Fittings, Sanitary Accessories

• Bend Radius
• Fixed; Not Bendable

• Coating Type
• Triple Layer Chrome

• Color
• Silver

• Connection
• Other, Threaded

• Connection Type
• Male BSP Thread

• Diameter
• 15 mm

• Flexibility
• Rigid

• Length
• 60 mm

• Material
• Brass

• Material Grade
• CW617N / Brass Grade I

• Outer Diameter
• 15 mm (1/2 inch)

• Product Type
• Other, Taper Cock

• Rated Pressure
• 10 bar

• Sealing Type
• Taper Ground with Internal Seal

• Section Shape
• Round

• Shape
• Other, Tapered Valve

• Standard
• Other

• Surface Treatment
• Other, Chrome Plated (C.P.)

• Temperature Range
• 0C to 80C

• Tensile Strength
• 250 MPa

• Thickness
• 3 mm (body wall)

• Thread Type
• BSP (British Standard Pipe)

• Tolerance
• 0.05 mm

• Usage
• Water and General Plumbing

• Yield Strength
• 110 MPa

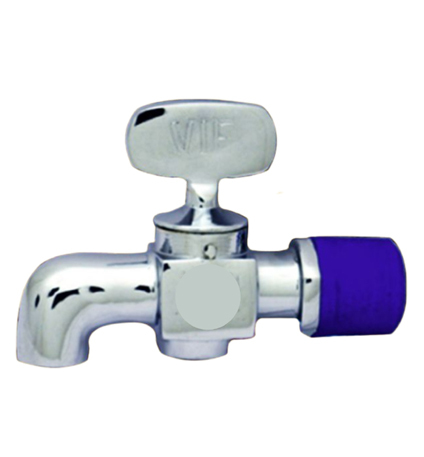

• Application
• other, Used for on/off flow control in pipelines

• Bend Radius
• N/A (Rigid Fitting)

• Coating Type
• Nickel/Chrome optional

• Color
• Golden Brass

• Connection
• Other, Threaded

• Connection Type
• Male Threaded

• Diameter
• 15 mm (1/2 inch nominal bore)

• Flexibility
• Rigid

• Length
• 56 mm (approx.)

• Material
• Brass

• Material Grade
• CW617N / IS 319 Brass

• Outer Diameter
• 19 mm (approx.)

• Product Type
• Other, Taper Cock Valve

• Rated Pressure
• Up to 10 bar (145 psi)

• Sealing Type
• Metal to Metal Seat

• Section Shape
• Square

• Shape
• Square

• Standard
• Other

• Surface Treatment
• Other, Polished

• Temperature Range
• -10C to 80C

• Tensile Strength
• 400 MPa (min.)

• Thickness
• 3 mm (body thickness)

• Thread Type
• BSP (British Standard Pipe)

• Tolerance
• 0.05 mm

• Usage
• Plumbing, Water Control, Industrial

• Yield Strength
• 270 MPa (min.)

• Application
• other, Pipeline systems, plumbing, industrial & gas fittings

• Coating Type
• Black enamel/anti-rust coating

• Color
• Black/Grey

• Connection
• Other, Threaded Nut Connection

• Connection Type
• Screwed/Threaded Ends

• Diameter
• Available in multiple bore sizes (15mm to 50mm)

• Flexibility
• Rigid

• Length
• Varies by size (commonly 2-5 inches)

• Material
• Other

• Material Grade
• FG 200 / FG 220

• Outer Diameter
• As per specification (commonly 15mm, 20mm, 25mm, etc.)

• Product Type
• Other, C.I. Taper Cock with Nut

• Rated Pressure
• Upto 12 kg/cm2

• Sealing Type
• Tapered Metal-to-Metal

• Section Shape
• Round

• Shape
• Other, Tapered (Conical) Body

• Standard
• Other

• Surface Treatment
• Other, Black Painted / Anti-corrosive coating

• Temperature Range
• -10C to +120C

• Tensile Strength
• 200-220 MPa

• Thickness
• As per size (typically 3-8 mm)

• Thread Type
• BSPT (British Standard Pipe Tapered)

• Tolerance
• 0.02 mm

• Usage
• Control or shut-off liquid or gas flow

• Yield Strength
• 130 MPa

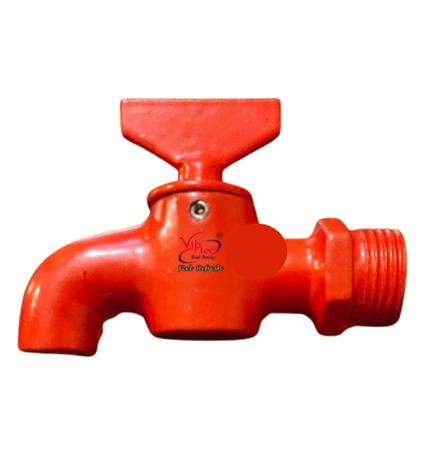

• Application
• other, Plumbing, Irrigation, Water Supply

• Coating Type
• Epoxy/Enamel Red Paint

• Color
• Full Red

• Connection
• Other, Threaded End

• Connection Type
• BSP Threaded

• Diameter
• As per size (15mm, 20mm, 25mm, etc.)

• Flexibility
• Rigid

• Length
• Custom/Standard Sizes

• Material
• Other

• Material Grade
• FG 220/260

• Outer Diameter
• Varies (Typically 15mm - 25mm)

• Product Type
• Other, Taper Cock

• Rated Pressure
• Up to 16 bar

• Sealing Type
• Metal to Metal

• Section Shape
• Round

• Shape
• Other, Tapered

• Standard
• Other

• Surface Treatment
• Other, Red Painted

• Temperature Range
• -10C to 120C

• Tensile Strength
• Min. 200 MPa

• Thickness
• Heavy Duty

• Thread Type
• BSP (British Standard Pipe)

• Tolerance
• 2% on dimensions

• Usage
• Control and regulation of fluid flow

• Yield Strength
• Min. 130 MPa
