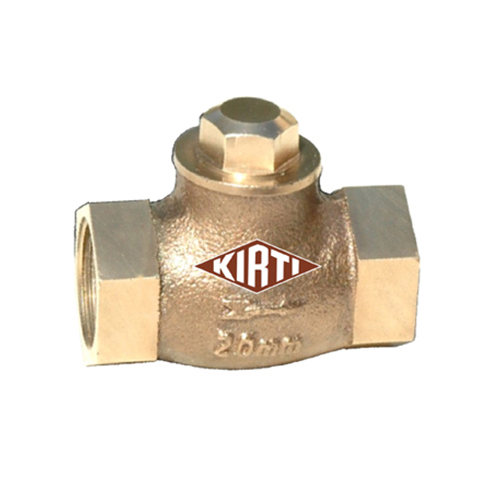

Gun Metal Horizontal Check Valve

Gun Metal Horizontal Check Valve Specification

Features
Corrosion resistant, sturdy construction, leak-proof design

Control System
Non-automated/manual

Valve Size
Available from 15mm to 100mm

Connection Type
Flanged ends as per IS:1538

Valve Type
Non-return valve

Material
Gun Metal (IS:318 Gr. LTB2/BS:1400 Gr.LG2)

Application
Industrial water, oil, steam lines

Sealing
Rubber gasket/Nitrile seating

Structure
Horizontal check valve

Type
Swing type check valve

Power
Manual

Size
15 mm

Pressure
Up to 16 kg/cm2 (PN16)

Media
Other

Port Size
15mm to 100mm (1/2 to 4)

Temperature
Up to 120C

Disc
Gun metal/bronze disc

Pin
Standard brass/bronze pin

Operation
Lift-off disc under forward flow, closes on reverse flow

Flow Direction
Unidirectional

Surface Finish
Polished/shot blasted

Weight
Varies as per valve size (e.g., 2.2 kg for 25mm)

Installation Position
Horizontal only

Body Test Pressure
Hydraulic up to 24 kg/cm2

Maintenance
Minimal; simple construction for quick servicing

Standards
IS:778/IS:1538 compliant

End Connection
Flanged/BSP threaded ends available

Packing
Carton box or wooden crate as per order

Gun Metal Horizontal Check Valve Trade Information

Minimum Order Quantity
100 Pieces

Supply Ability
5000 Pieces Per Month

Delivery Time
7 Days

About Gun Metal Horizontal Check Valve

Size 15mm to 100mm

Materials

Part No.	Name of Part	Material	Specification
1	Body	Gun Metal	IS:318 Ltb2
2	Seat	Gun Metal	IS:318 Ltb2
3	Nut	Brass	IS:1264 Gr DCB2
4	Spring	Phosphor Bronze	-

Specifications

Gun Metal Horizontal Check Valves ISI Marked to IS:778/1984 Class-1

Screwed in Bonnet
Integral Seat
Screwed Female Ends to BSP
Hydraulic Test Pressure: Body 1.5Mpa, Seat: 1.0Mpa
Suitable for Water & Oil

Features

Made from 100% Lab Tested Material
Excellent Performance
Permit flow in one direction and closes automatically if the flow reverses
Meant for Horizontal Lines

Spotlight your pipeline system with the Gun Metal Horizontal Check Valve, a supreme product crafted for high-endurance and minimal maintenance. This noble valve stands out for its robust gun metal body, precision polished or shot-blasted surface, and leak-proof design. It supports unidirectional flow, operated manually, and is ideal for industrial water, oil, and steam lines. Compliant with scarce industry standards like IS:778/IS:1538, it thrives under hydraulic test pressures up to 24 kg/cm2. Available in sizes from 15mm to 100mm, this corrosion-resistant, breathtakingly sturdy valve promises efficient performance and reliability for every installation.

Application Versatility and Site Adaptability

The Gun Metal Horizontal Check Valve is essential for industrial water, oil, and steam lines, making it a preferred choice in power plants, refineries, and processing facilities across India. With unidirectional flow and horizontal installation only, it seamlessly integrates into pipelines requiring reliable backflow prevention. Designed for both flanged and BSP threaded ends, its use spans a wide spectrum of application media, offering versatility without compromising safety or efficiency.

Sample Availability, Packaging, and Certifications

Samples for the Gun Metal Horizontal Check Valve are accessible upon quotation or purchase order confirmation. Each valve is securely packed in a sturdy carton box or a wooden crate, ensuring freight safety based on order requirements. All units are manufactured with strict adherence to IS:778/IS:1538 compliance standards, and supporting certificates are provided with every dispatch. This guarantees quality assurance and smooth logistics for both domestic and export deliveries.

FAQ's of Gun Metal Horizontal Check Valve:

Q: How is the Gun Metal Horizontal Check Valve installed?

A: The valve is designed for horizontal installation only, ensuring effective unidirectional flow and reliable backflow prevention in various pipeline systems.

Q: What are the key usage areas for this check valve?

A: It is ideal for industrial water, oil, and steam pipelines, commonly found in power plants, manufacturing, and processing units.

Q: What media can this check valve handle?

A: This valve is suitable for water, oil, and steam, making it versatile for a range of industrial fluid control applications.

Q: How does the maintenance process work for this valve?

A: Maintenance is minimal due to the valve's simple construction, allowing for quick servicing and reduced downtime.

Q: What is the benefit of the valve's material and construction?

A: Made from supreme quality gun metal, the valve offers corrosion resistance, leak-proof sealing, and a sturdy, durable structure for long-term performance.

Q: When should I request a quotation or place a purchase order for a sample?

A: You can request a quotation or submit a purchase order to obtain a sample, especially if you wish to verify compatibility and quality before large-scale procurement.
